MiniLock 570 Security Seals

SKU: Product Code: UV570
Manufacturer part number: UV570
Products specifications
Applications Electricity, gas and water meters, trolleys, valves, small enclosures
Product Size Guide 190mm (overall length)
Material Available options: Nylon, Polypropylene
Stock Marking N/a
Customisation Options Laser or inkjet print: Printed text, logos, and 6-digit sequential numbering

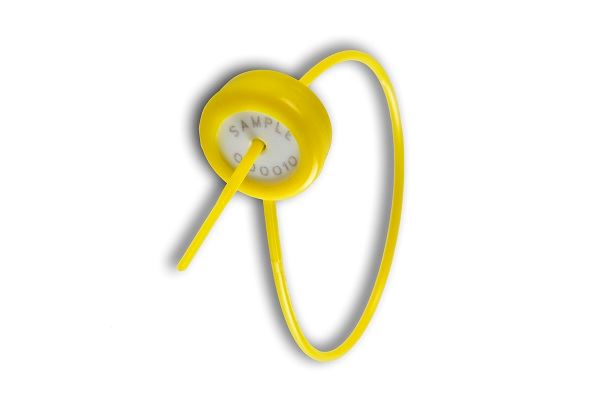

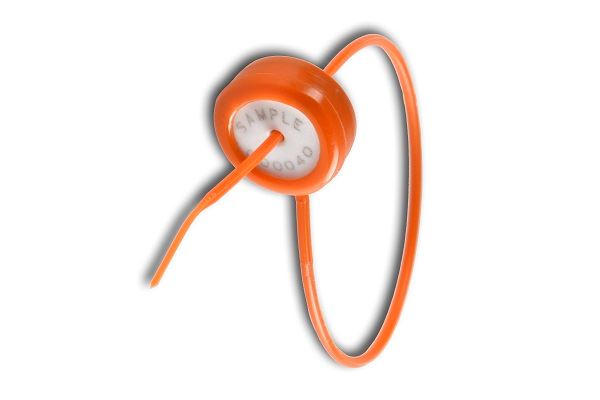

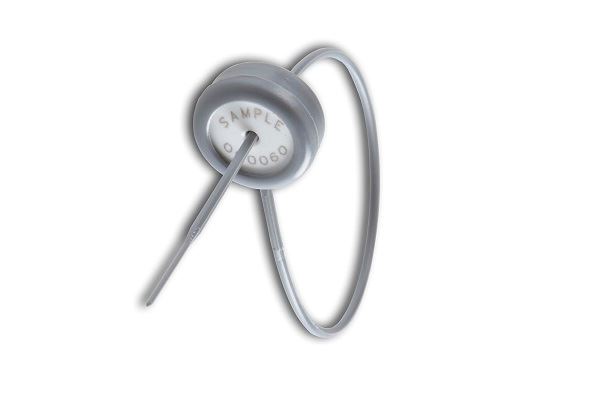

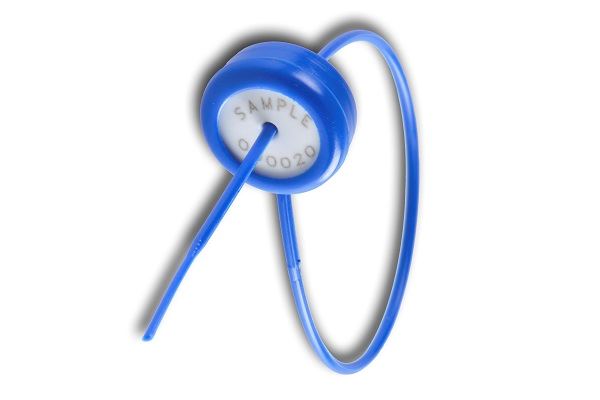

Colour Available options: Red, Blue, Green, Yellow, White
Marking Type Laser Print
Useable Length (mm) 160
Break Strength (KgF) 12
Removal Method Cutting Tool
Print Options Available options: Text Print, Sequential numbering
Sustainability 100% Recyclable
Pack Size Cartons of 1000
Download Spec Sheet /Content/Uploads/UNI570 spec.pdf

Miniature pull-through security seal for small applications e.g. utility meters & terminal covers

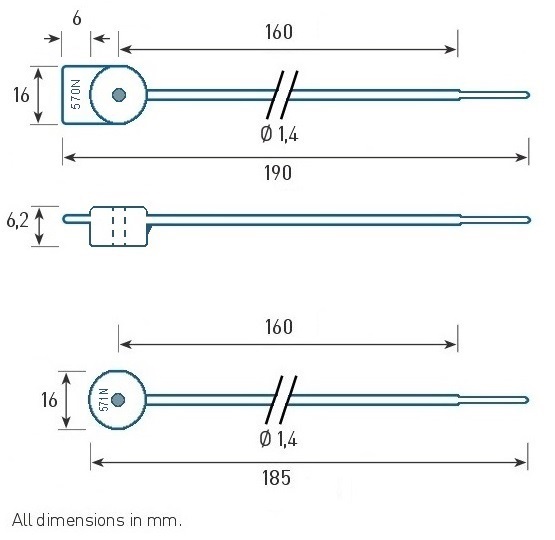

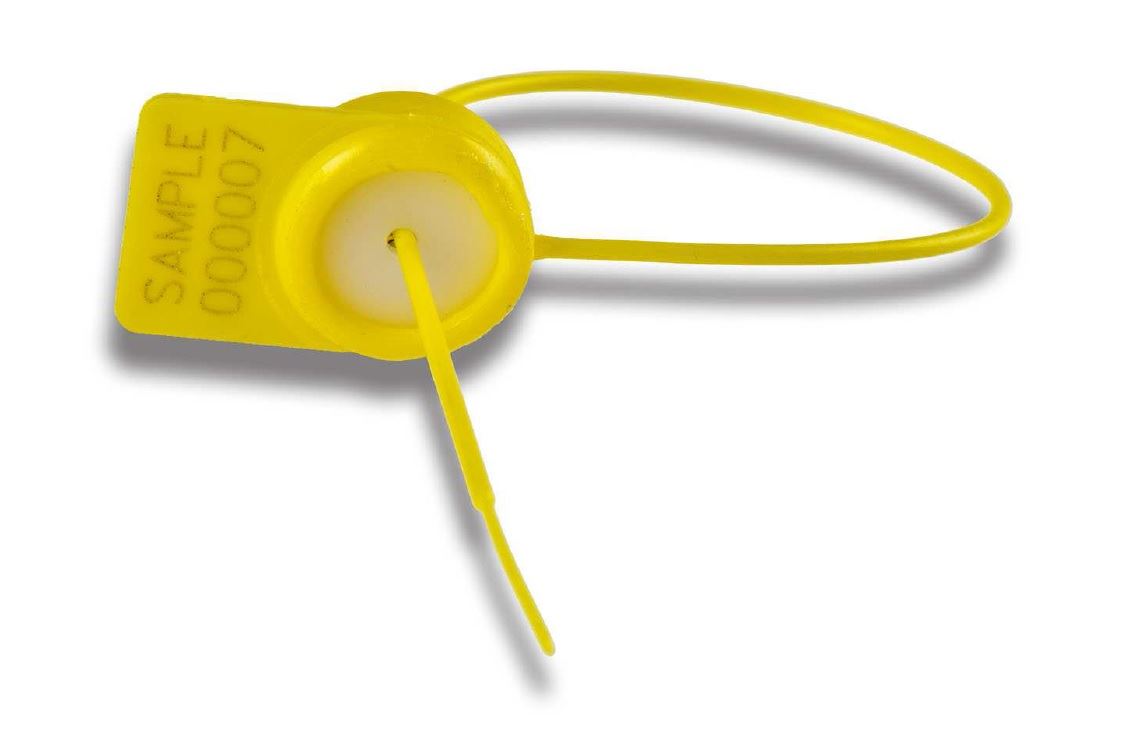

The MiniLock 570 is a small pull-through meter security seal ideal for electric utility meters, meter terminal covers, trolleys and other small-scale applications. The MiniLock 570 meter seal's nylon construction provides a high pull-strength of 12KgF when compared to its miniature size (190mm length x 1.3mm diameter tail), and also functions well in wide operating temperatures from -40°C to +80°C. Available with or without a rectangular print area (UNI571) adjacent to the locking chamber.

The MiniLock 570 can alternatively be manufactured in a polypropylene material where lower strength is required (for example emergency exit doors, for use as a clothing tag etc).

  • Ideal for securing small items such as utility meters, meter covers, cabinets etc
  • Suitable for use in extreme temperatures, from -40°C to +80°C (nylon model)


Call for pricing
Supplied in
Cartons of 1000

Looking for a bespoke solution or volume discounts?

Call us on 01829 760000 for a tailor made quote
